BCI TMachine

Or Get It As Part of BCI TM-M

$4.00 Add to Cart

Inspired by the Music Thing Modular Turing Machine, TMachine is a sequencer that you can't really control... at least not much!

At the core of the machine is a 16 bit ring buffer that is is pre-loaded with a random value and is rotated left one bit position on each clock pulse. The lower 8 bits of the buffer are displayed on 8 LEDs and converted into an output voltage that can be used to drive any other CV controllable parameter in your patch. You can control the rate at which bits in the buffer are flipped via knob or CV, and set the length of the bit loop.

A "Pulse" output is provided that generates a pulse when the P bit in the buffer is set, as well as a "Noise" output driven by the machine's internal noise source. The range of the generated output CV is adjustable, allowing the output voltage range to be tuned to a particular application.

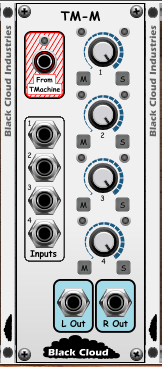

An "Expansion" output allows connection to the TM-P, TM-V and TM-M output expanders.
