ADMX is a bundle of modules that allows you to control DMX512 compatible stage lighting using control voltages inside Voltage Modular patches.

See https://adroitsynthesis.com/admx/ for comprehensive documentation.

Rig definition modules:

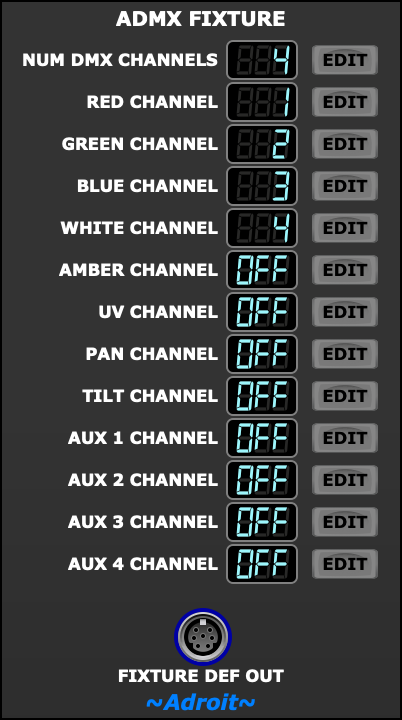

• ADMX Fixture - specifies what channels are used by a specific type of lighting fixture
• ADMX Rig Definer - specifies what fixtures your lighting rig consists of

Core modules:

• ADMX Output - converts up to 16 ADMX signals to DMX signals that drive your lighting rig
• ADMX Color - controls the hue, saturation and brightness components of an ADMX signal

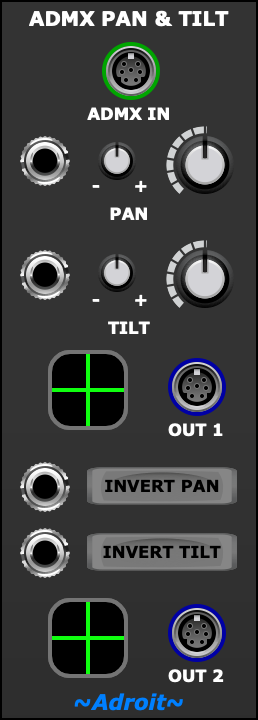

• ADMX Pan & Tilt - controls the horizontal and vertical rotation components of an ADMX signal
• ADMX Aux - controls four auxiliary components of an ADMX signal for things like strobing, focus, gobos and prisms

Processing modules:

• ADMX Cascade - a programmable tempo-synced multi-tap delay line for ADMX signal animation
• ADMX Dimmer - controls the brightness component of an ADMX signal (the lighting equivalent of a VCA)
• ADMX Blend - interpolates between all components of two ADMX signals
• ADMX Combine - adds two ADMX signals together

Utilities:

• ADMX Watcher - displays all of the information inside an ADMX signal
• ADMX RGB to HSB - converts red, green, blue color information to the hue, saturation, brightness color model
• ADMX HSB to RGB - converts hue, saturation, brighness information to the red, green. blue color model
• ADMX Decoder - splits an ADMX signal into its components and RGBWAUV derivatives
• 4×4 Knobs - a utility allowing independent fader control of each output
